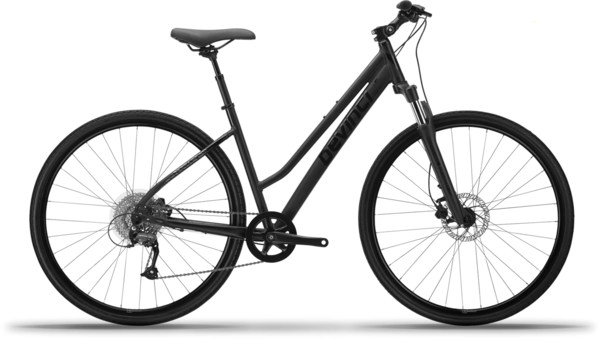

Devinci Milano Disc Stepthru Altus 8S
$664.00
$949.00
Details
TIME YOUR PERFECT RIDE
Trading a gas pedal past for a cleaner, powered-by-you future was the inspiration behind Devinci's Leisure Series lineup. That and-of course-making everyday outings even more fun. Optimum GO2 builds bring reliability and confidence-inspiring features to casual countryside excursions or mandatory mid-town romps. Rear rack, fender, and kickstand compatibility enhance versatility across all models. And final-touch details such as a premium finish bolstered by clean, internal cable routing bring it all home in a sleek, stylish package. Your perfect ride starts here.
| Size | X-Small | Small | Medium | Large | X-Large |
|---|---|---|---|---|---|
| ST (mm) | 375 | 400 | 450 | 500 | 550 |
| SA | 74° | 73° | 73° | 73° | 73° |
| HA | 70° | 70° | 70° | 70° | 70° |
| TT (mm) | 545 | 555 | 570 | 585 | 600 |
| REACH (mm) | 379 | 378 | 390 | 396 | 406 |
| CS (mm) | 435 | 435 | 435 | 435 | 435 |
| WB (mm) | 1037 | 1036 | 1052 | 1068 | 1085 |
| BBH (mm) | 282 | 282 | 282 | 282 | 282 |
| SOH (mm) | 638 | 652 | 683 | 720 | 759 |
| STACK (mm) | 580 | 580 | 589 | 617 | 633 |
| HT (mm) | 90 | 90 | 100 | 130 | 150 |
| Size | Rider Height (cm) |
|---|---|
| X-Small | 147-160 |
| Small | 152-171 |
| Medium | 169-180 |
| Large | 178-187 |
| X-Large | 185-193 |
Specs
| Frame | Aluminum Optimum G02 |
|---|---|
| Fork | SR Suntour NEX E25 HLO-DS | 75mm |
| Rims | V2 Comp db | 18mm inner |
| Hubs |
Front: Formula Disc | QR 9x100mm Rear: Formula Disc | QR 10x135mm |
| Spokes | Stainless 14G |
| Tires | Kenda K1170 | 700x38c |
| Crankset | Alloy | 36T |
| Shifters | Shimano M315 | 8s |
| Rear Derailleur | Shimano Altus M370 | 8s |
| Cassette/Freewheel | Sunrace | 8s | 11-40T |
| Chain | KMC Z | 8s |
| Brakes | Tektro HD-M285 | Hydraulic |
| Rotors | Stainless | 160mm |
| Handlebars | Devinci | B:25.4mm | R:20mm | W:640mm |
| Tape/Grips | Devinci Ergo Comfort |
| Stem | Devinci Adjustable | B:25.4mm | 0-60° |
| Headset | Upper: FSA No.28 EC | Lower: FSA IS-3 IS |
| Seatpost | Suspension Post | 27.2mm |
| Saddle | Devinci |
| Pedals | Wellgo C246 |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Black Edition / Small | 883385209516 | FV22070211 | FV22070211 |
| Black Edition / Medium | 883385207222 | FV22070311 | FV22070311 |
| Black Edition / Large | 883385209523 | FV22070411 | FV22070411 |
